Description

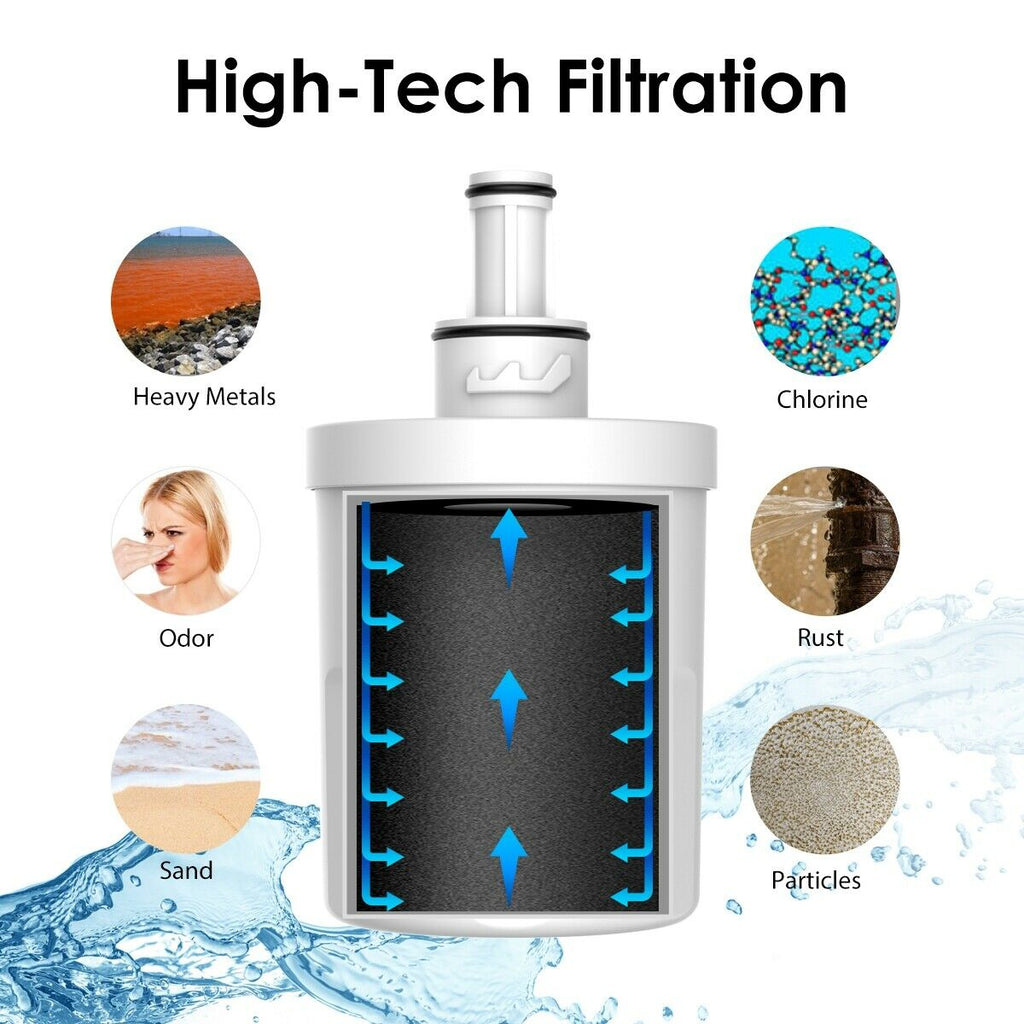

- Triple Action Filtration Technology: Filtration efficiency up to 3 microns, effectively removes sediment, chlorine, organic chemicals and odor, etc.
- High-quality natural coconut shell-activated carbon.
- 100% Compatibility: Pay much less to get more clean and pure water.
Compatible Filter Models:
Samsung: DA29-00020A, DA2900020A, DA29-00020B, DA2900020B, DA29-00019A, DA2900019A, DA29-00020A/B, DA29-00020AB, DA-97-08006A, DA-97-08006A-B, DA-97-08006B, DA97-08006A-B, DA97-08006A, DA97-08006B, EFF-6027A, EFW-DA2920, FMS-2, HAF-CIN, HAF-CIN-EXP, HAF-CINEXP, HAFCIN, HAF-CIN/XME, HAF-CINXME, HDX-FMS-2
Kenmore: 46-9101, 469101, 9101, 04609101000, 09101
Compatible Refrigerator Models:
| RF22K9381SG | RF25HMEDBWW | RF263TEAESR | RF28HFEDTSG | RF30KMEDBSG | RF4287HAWP | RH22H9010SG | RS25J500DBC |
| RF22K9381SR | RF260BEAEBC | RF263TEAEWW | RF28HFEDTSR | RF30KMEDBSR | RF4289HARS | RH22H9010SR | RS25J500DSG |
| RF22K9581SG | RF260BEAESG | RF265BEAESG | RF28HFEDTWW | RF31FMEDBBC | RF6296HD | RH25H5611BC | RS25J500DSR |
| RF22K9581SR | RF260BEAESP | RF265BEAESR | RF28HMEDBBC | RF31FMEDBSR | RFG293HABP | RH25H5611SG | RS25J500DWW |
| RF22KREDBSG | RF260BEAESR | RF26HFENDBC | RF28HMEDBSR | RF31FMEDBWW | RFG296HDBP | RH25H5611SR | RS261 |
| RF22KREDBSR | RF260BEAEWW | RF26HFENDSR | RF28HMEDBWW | RF31FMESBSR | RFG296HDRS | RH25H5611WW | RS261MDBP |
| RF22M9581SG | RF261BEAEBC | RF26HFENDWW | RF28HMELBSR | RF323TEDBBC | RFG296HDWP | RH29H8000SR | RS261MDRS |
| RF23HCEDBBC | RF261BEAESG | RF26J7500BC | RF28JBEDBSG | RF323TEDBSR | RFG297HDBP | RH29H9000SR | RS261MDWP |
| RF23HCEDBSR | RF261BEAESP | RF26J7500SR | RF28JBEDBSR | RF323TEDBWW | RFG297HDPN | RH30H9500SR | RS263TDBP |
| RF23HCEDBWW | RF261BEAESR | RF26J7500WW | RF28K9070SG | RF32FMQDBSR | RFG297HDRS | RS25H5000BC | RS263TDRS |
| RF23HCEDTSR | RF261BEAEWW | RF28HDEDBSR | RF28K9070SR | RF32FMQDBXW | RFG297HDWP | RS25H5000SR | RS263TDWP |
| RF23HSESBSR | RF263BEAEBC | RF28HDEDPBC | RF28K9380SG | RF34H9950S4 | RFG298HDBP | RS25H5000WW | RS265TDBP |
| RF23HTEDBSR | RF263BEAESG | RF28HDEDPWW | RF28K9380SR | RF34H9960S4 | RFG298HDPN | RS25H5111BC | RS265TDRS |
| RF23J9011SG | RF263BEAESP | RF28HDEDTSR | RF28K9580SG | RF4267HABP | RFG298HDRS | RS25H5111SG | RS265TDWP |
| RF23J9011SR | RF263BEAESR | RF28HFEDBBC | RF28K9580SR | RF4267HARS | RFG298HDWP | RS25H5111SR | RS267TDBP |
| RF24FSEDBSR | RF263BEAEWW | RF28HFEDBSG | RF28M9580SG | RF4267HAWP | RFG29PHDBP | RS25H5111WW | RS267TDPN |
| RF25HMEDBBC | RF263TEAEBC | RF28HFEDBSR | RF28M9580SR | RF4287HABP | RFG29PHDPN | RS25H5121BC | RS267TDRS |
| RF25HMEDBSG | RF263TEAESG | RF28HFEDBWW | RF30HBEDBSR | RF4287HARS | RFG29PHDRS | RS25H5121SR | RS267TDWP |
| RF25HMEDBSR | RF263TEAESP | RF28HFEDTBC | RF30HDEDTSR | RF4287HARS/AXX | RFG29PHDWP | RS25H5121WW | RSG307AARS |
Installation Steps
1. Locate the filter in the refrigerator
2. Remove the old filter by gently rotating it 1/4 turn to the left.
3. Write the installation date on the new filter as a reminder of replacing the filter within 6 months.
4. Remove the sealing label from the top of the new filter.
5. Align the arrow on the bottom of the filter in the horizontal position and insert the filter into the filter housing.
6. Rotate the filter 1/4 turn to the right until it stops and is locked into place.
7. Run water through the dispenser for 2.5 gallons (about 5 minutes）to prime the filter before use. Discard the purged water.
8. Reset the water filter system.
Operating Parameters:
1. Working Pressure: 200-700kPa (30-100psi)
2. Operating Temperature: 0.6-38℃（33-100℉）
3. Rated Service Flow: 0.5gpm(1.9L/min)
4. Rated Capacity：300 gallons (1100 liters)
Warm Tips:
Before Use: Run water from the dispenser for 6-8 minutes (about 3-4 gallons) to clear the system and prevent sputtering.
Filtration Life: 6 months/300 gallons (depends on water quality and level of contaminants), please change your filter at least every 6 months to keep the water fresh.
Note:
Samsung is a registered trademark of Samsung Electronics Company LTD.
Kenmore is a registered trademark of KCD IP, LLC of Delaware.
All these trademarks are used for compatibility information only. Redypure brand is not affiliated with this brand.
